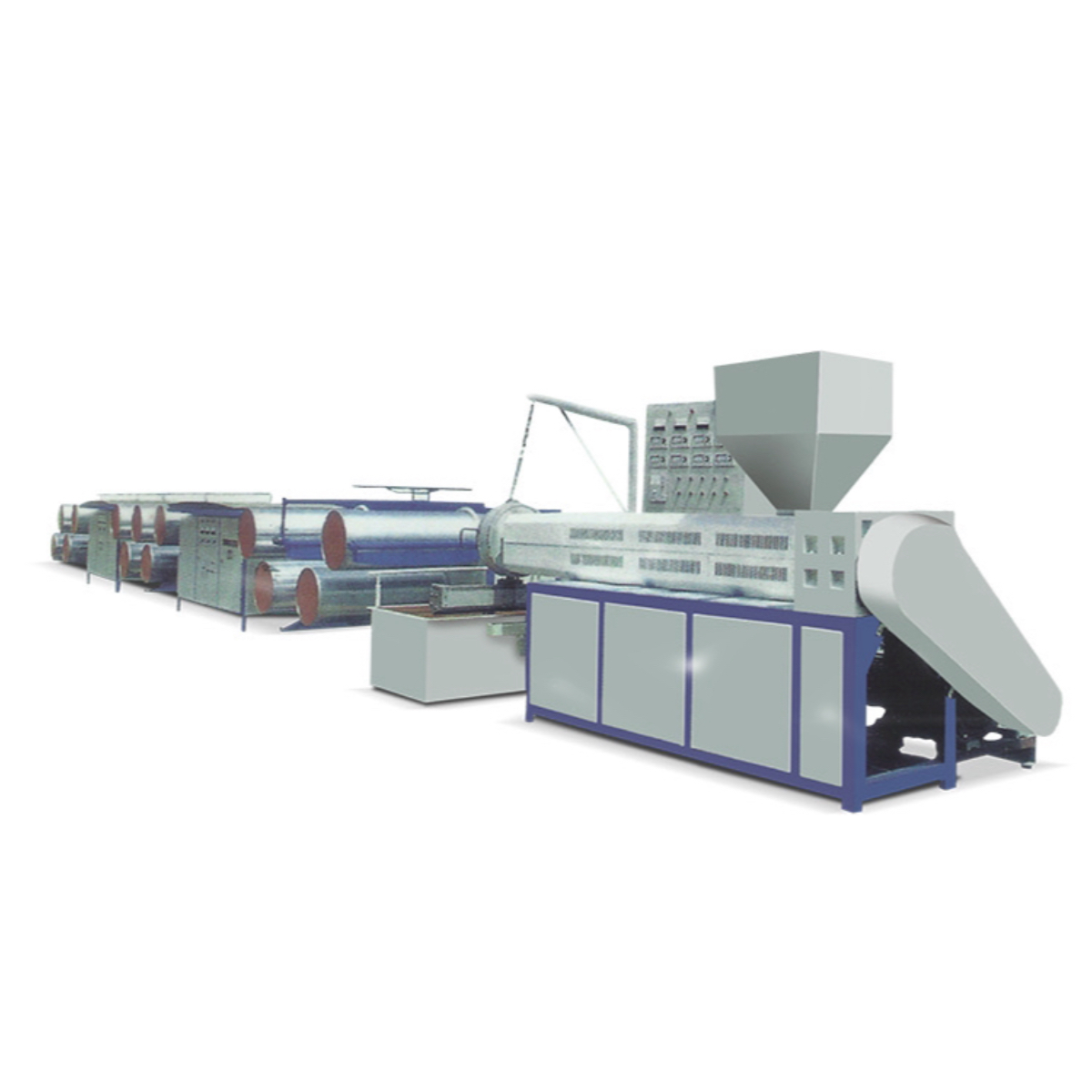

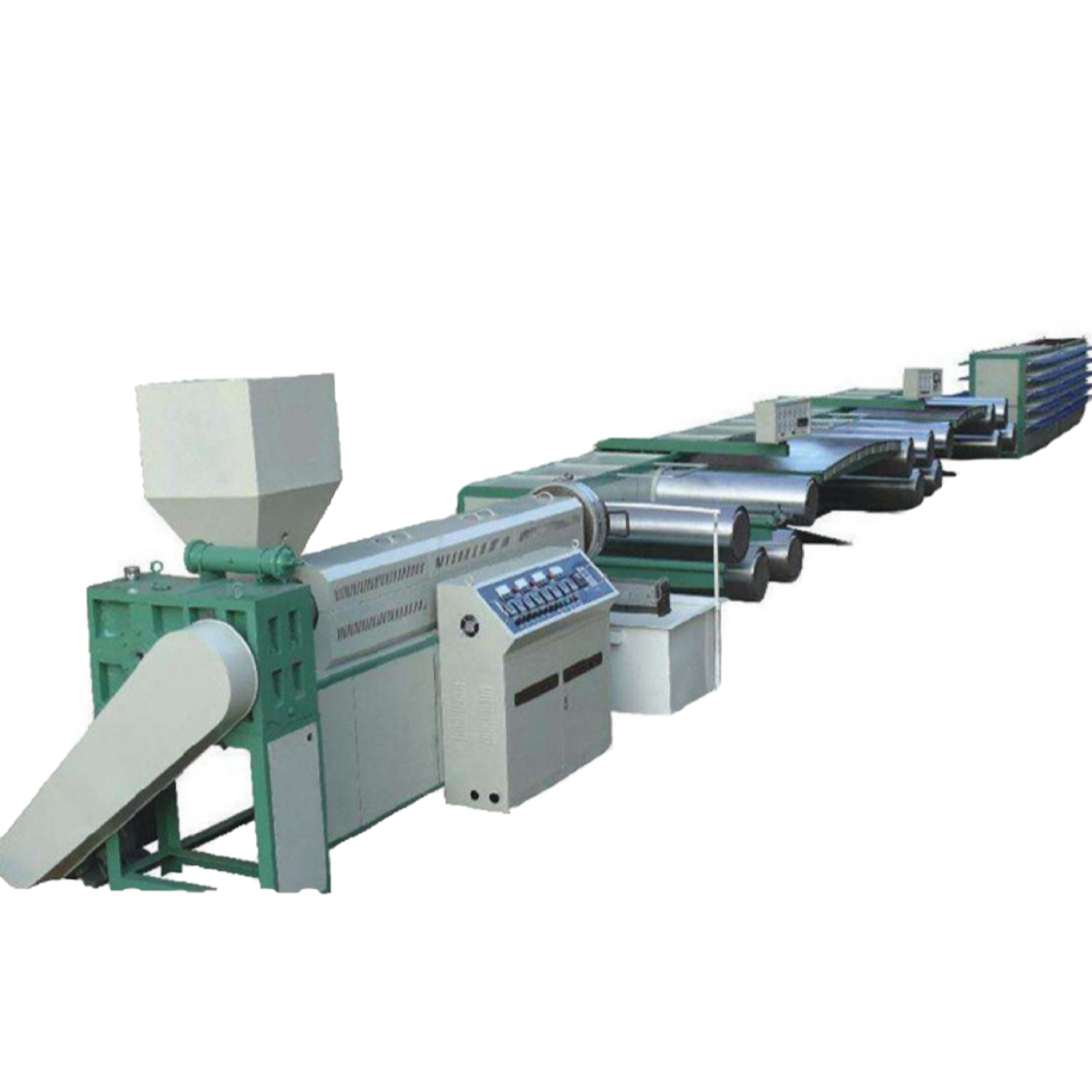

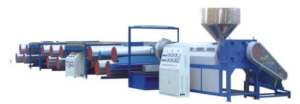

PLASTIC FLAT WIRE DRAWING MACHINE

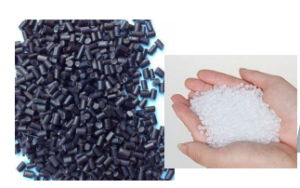

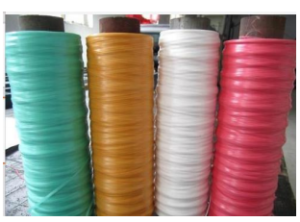

PP/PEgranule                      flat wire

Use

This machine uses polypropylene and high-density polyethylene as raw materials. It is heated, extruded, cut and stretched to form a flat yarn. After being wound up by a winder, it is used for circular loom weaving.

the

features

1. 100% recycled materials, powder or pellets can be used to draw flat yarn.
2. The screw and barrel of the extruder are made of 38CrMoAlA alloy steel, after nitriding treatment, the hardness reaches above HV950;
3. The reducer of the extruder adopts a hard-toothed helical gear reducer made of 20CrMnTi alloy steel; 4. The extruder is heated by a cast aluminum heating ring, which is durable.

LF-1600 WIRE DRAWING MACHINE PARAMETER CONFIGURATION

Picture	NAME	Specification
	Width of the wire	0.2-8mm
	Capacity	2-3ton /24 hours（60-100 gm/m2) 1.5-2ton  /24 hours（30-60 gm/m2)
	Main motor	Jiangsu Nanhua motor 45KW Pioneer frequency converter 55KW
	Traction frame	Iron plate thickness 12mm width 1.2meter

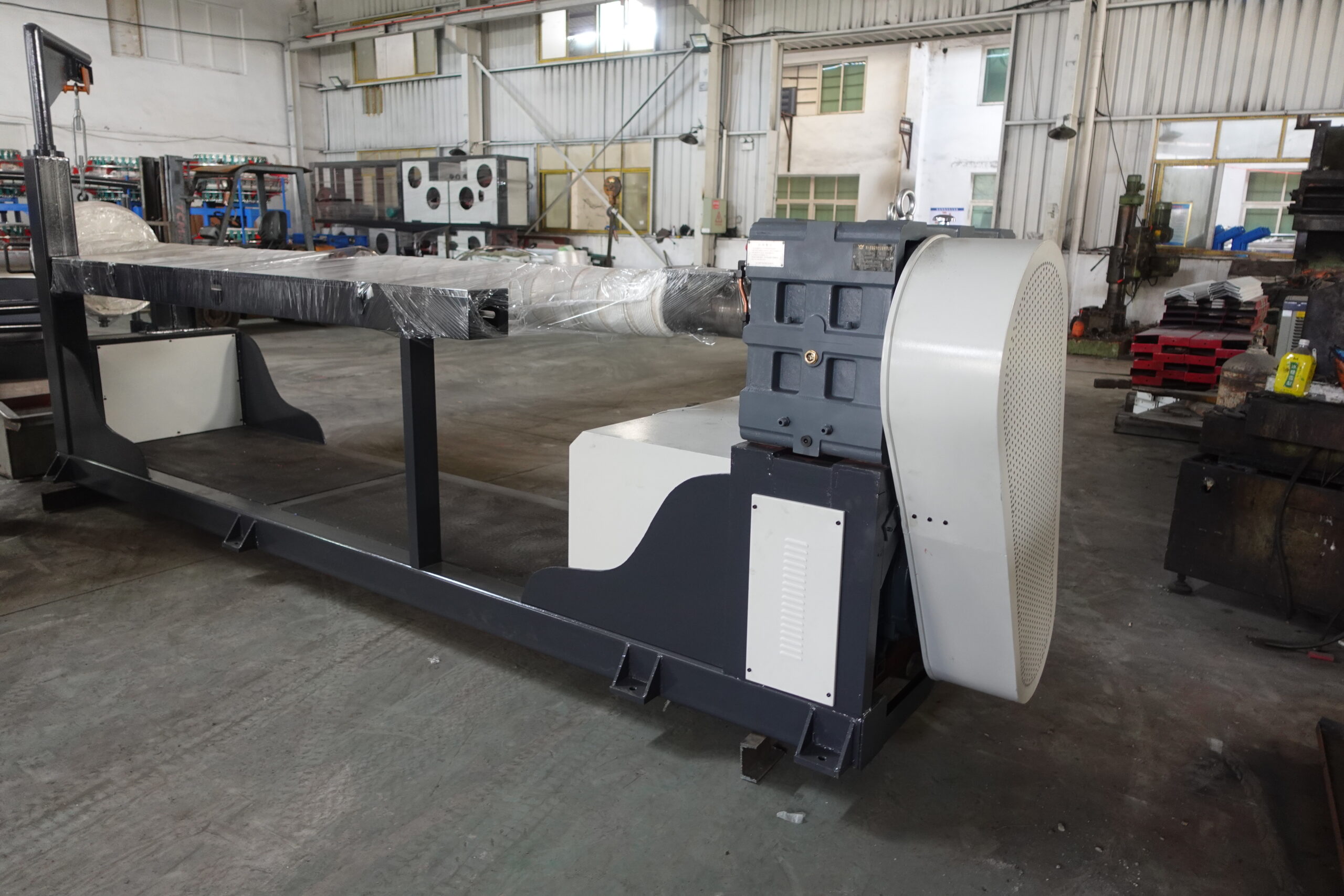

	Reduction box	hardened gear ( 280)
	screw	38CrMoAlΦ145*4200mm nitrided
	Barrel	38CrMoAl Φ195mm *4200mm alloy steel

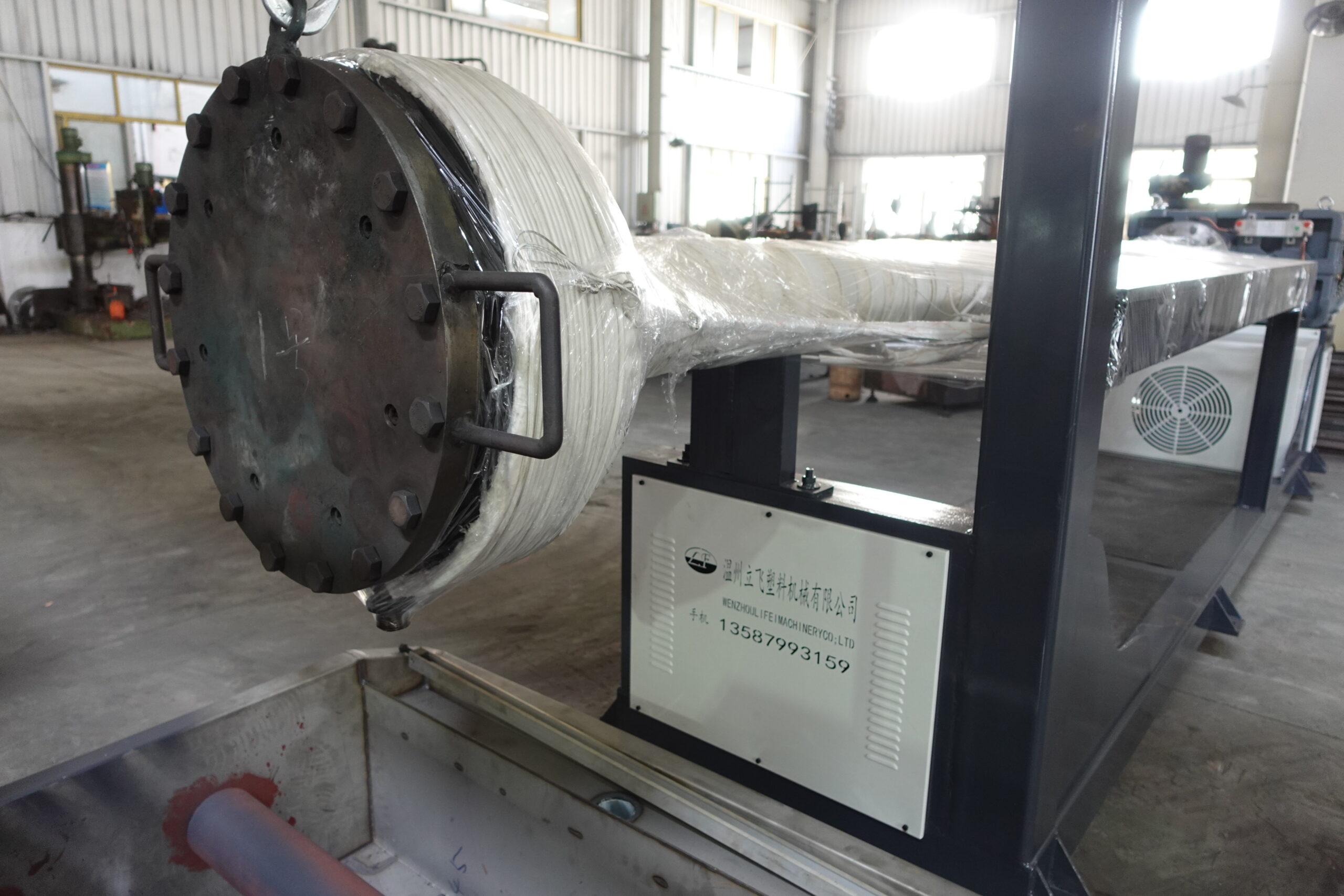

	Tee joint	New type IDΦ520  ODΦ600
	Die	New type 38# length 1600mmfine polished and chrome plated
	Traction motor	Jiangsu Nanhua motor 4KW 1set  11KW 1set Pioneer frequency converter  5.5KW 1set ,15KW 1set Double frequency synchronous speed regulation
	Bearing	SMP213

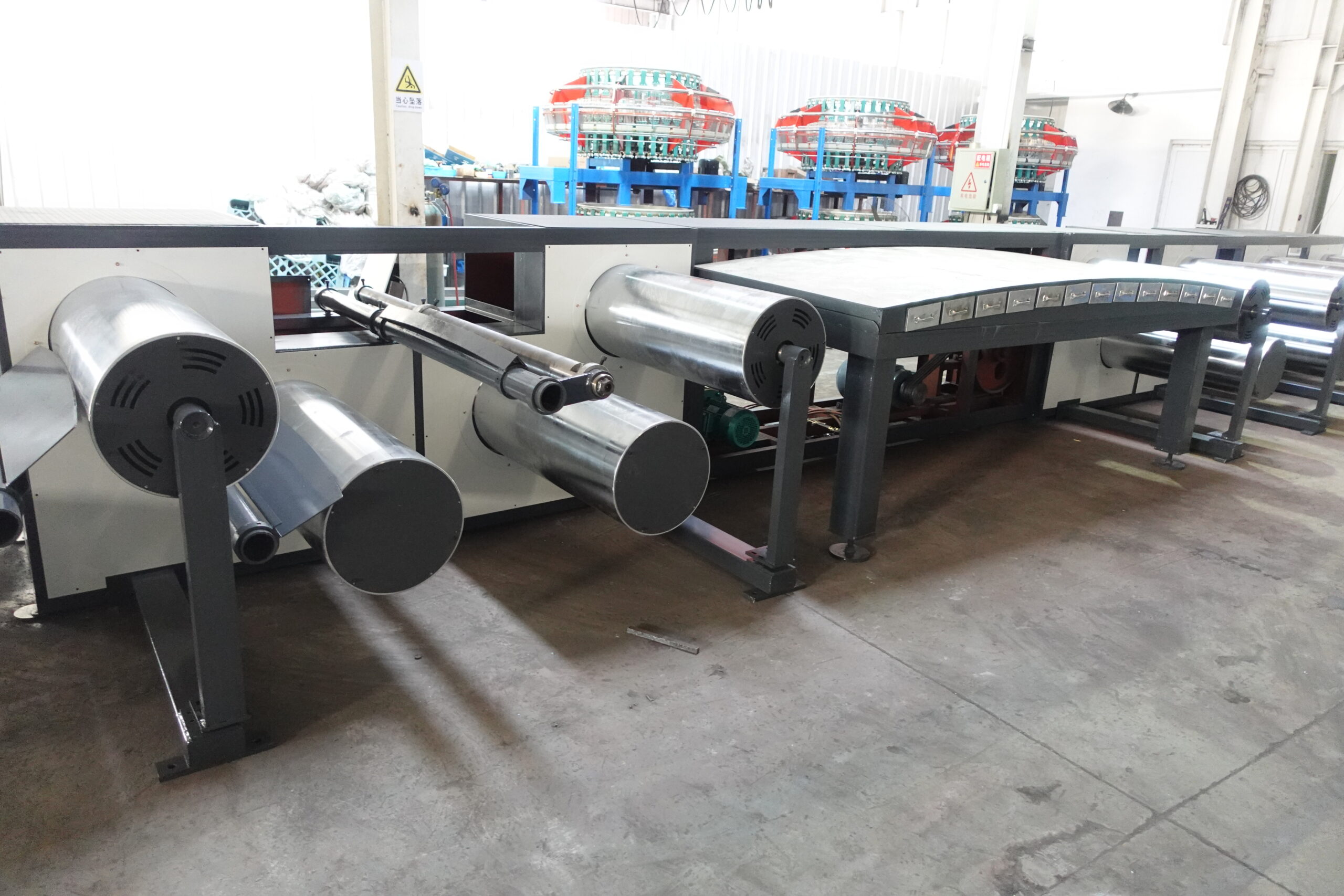

	Roller	Φ480*1780mm 12 of then are chrome plated，Axis fixed roller rotation Channel steel 16.18#

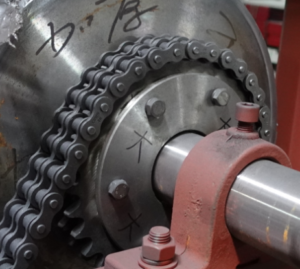

	Chain	1 inch 2rows supplied by HangZhou ZiQiang
	Chian wheel	NO12 channel steel ,nitrided.  NO.45 medium carbon steel treated with hign frequency quenching Draw ratio1：20  /1:5.6
	Oven	Single   oven
	Barrel heating	heating energy-saving,1 dual frequency converter,all with touch screen and weight adjustment

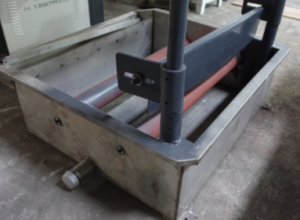

	Water tank	Stainless steel tube 114 # Water knife chrome plated
	Cutter shaft	1 pieces
	New Cutter ring  New cutter shaft	2 pieces
	Magnetic powder cluth	20KG magnetic powder cluth winding

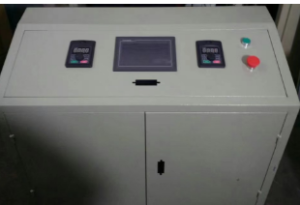

	Distribution box	Digital temperature controller ,automatic control. Touch screen
	Size	35*1.8*1.7meter
	Weight	12000KGS
