Product Description

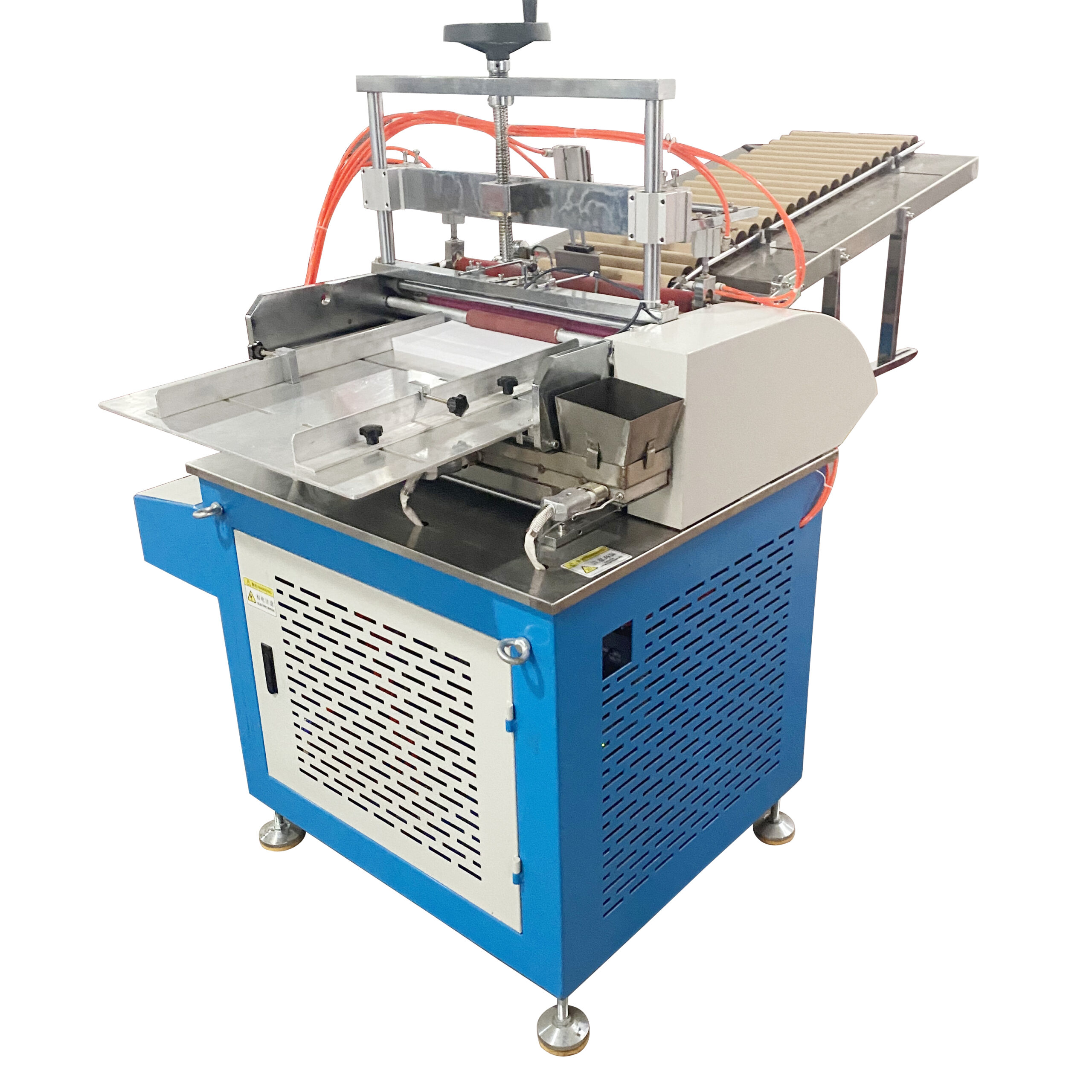

T-500B PAPER TUBE LABELING MACHINE

Detailed description

  1. T-500BPaper tube labeling machine is applicable to chemical industry, pesticide industry, food industry, paper cans industry, etc
  2. The machine is suitable for small batch and multispecies production, sticker label on the cylindrical container, half, or all label.
  3. One machine can be used for variety of paper tube, change the label size or paper tube don’t need to replace any parts, it only takes a few minutes to adjust to work
  4. Operator simply puts labels into the storage, then machine will do automatic photoelectric detection,picking label, applying glue and labeling paper tube in 1 second.
  5. The machine is hot melt glue labeling machine, labeling effect is good, with water or in wet high temperature 50-500  mmdoes not fall off.
  6. Equipped with automatic control temperature heater and protection device: the glue does not dissolve, the motor not starts.
MAIN SPECIFICATION
Tube diameter 30-120 mm Operate mode Automatically
Tube wall-thickness 1-5 mm Label thickness 100-157g
Tube length 100-420 mm Label accuracy ±0.5MM
Working air pressure 0.6 MPA Label paper feed way Automatic
Main motor 3 KW Operator 1
Touch screen XinJie Mainframe size 1300*700*1500 mm
PLC controller XinJie Weight 400 KG
Product speed 10-40 / min One instruction manual

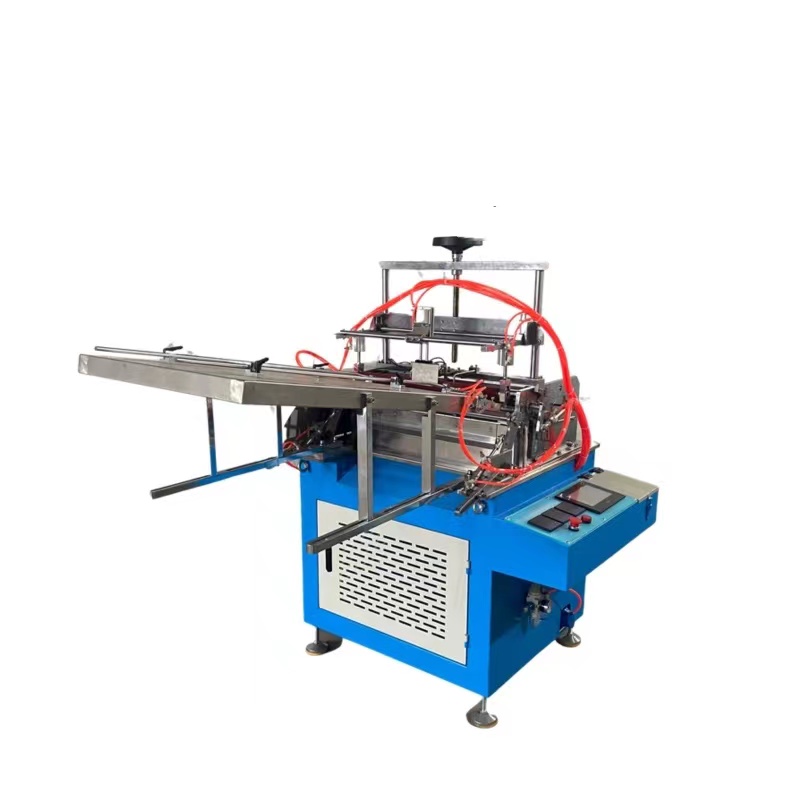

Product Show
