WINDER MACHINE

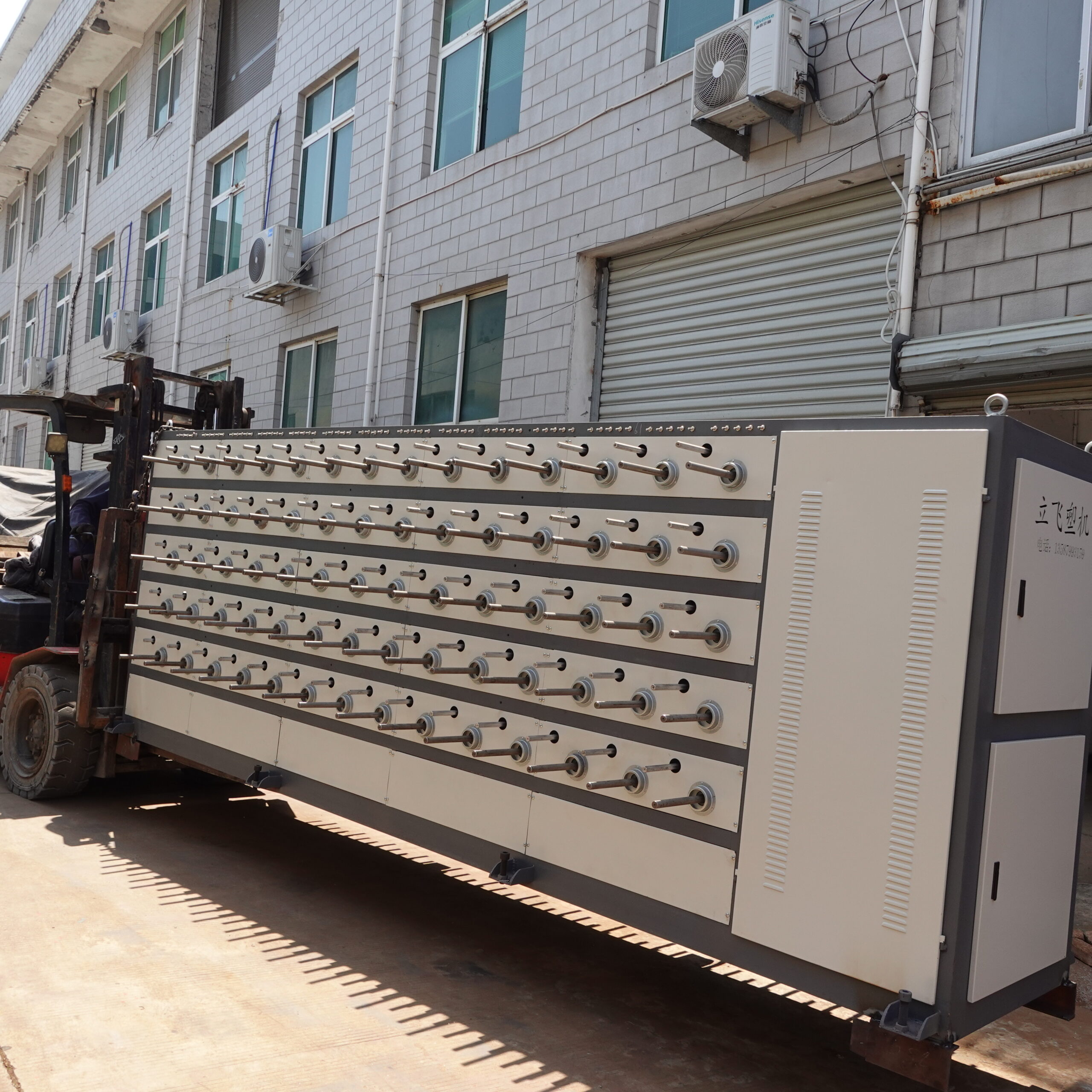

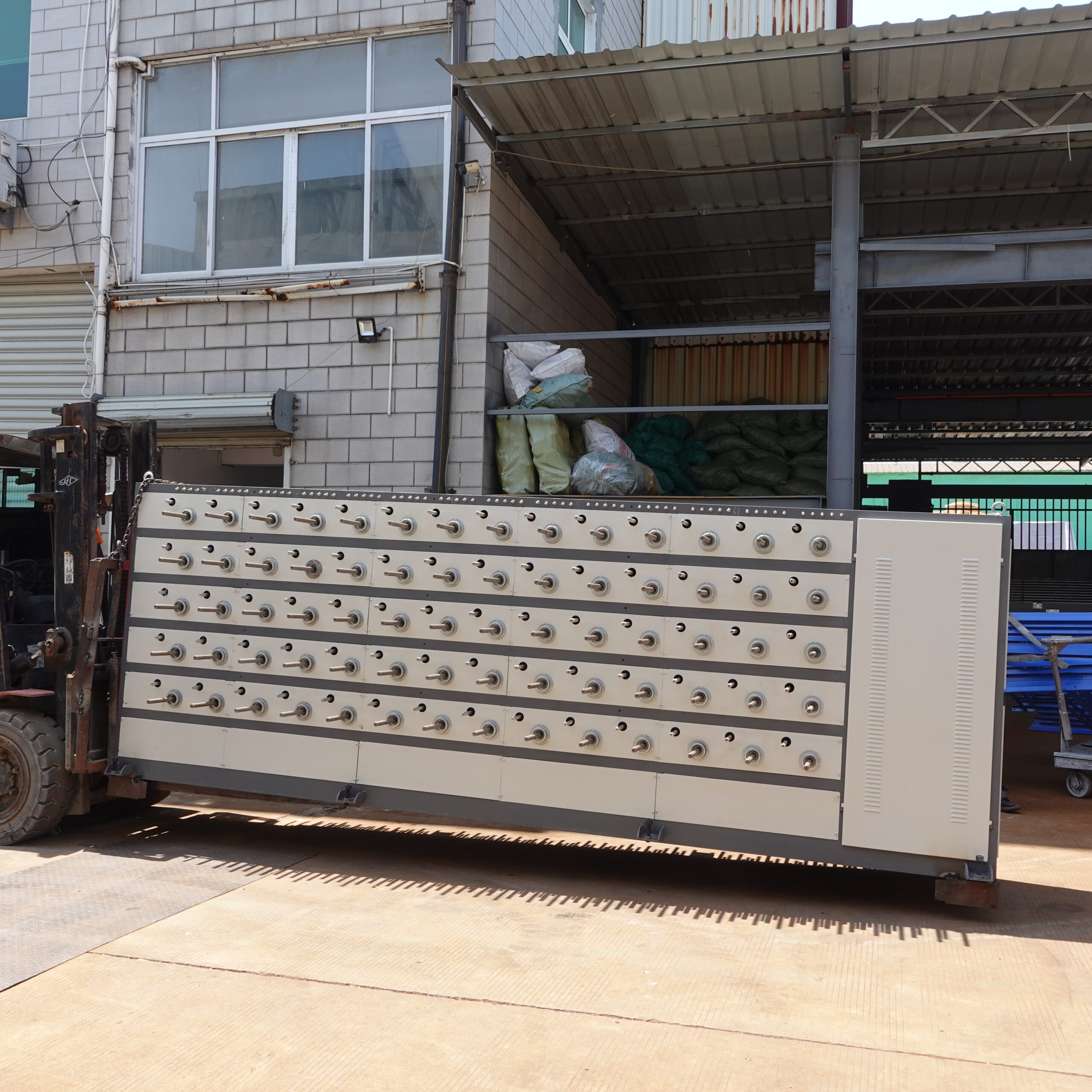

The heart-shaped cam is used to replace the reciprocating screw mechanism of the original combined winder, and the reciprocating motion is all made of rolling friction, with less wear on the parts, easy and stable movement, and smooth winding wire spindles. It adopts five-layer double-sided winding, and the length of the whole machine is shortened, which is beneficial to use with large-scale wire drawing machines.
| Type | Layer number of spindle | Number of spindle | Dimension of Bobbin
(D*L)(mm) |
Linear speed of tape winding
(m/min) |
Power of main motor
(kw) |
Power of winding motor
(kw) |
Installing Dimensions (L*W*H)(mm) | Weight
(kg) |
| LF-620 | 5 | 620 | 38*230 | 50-160 | 2.2 | 31 | Doulbe line
9000*1450*1600 9000*1450*1600 |
6500 |
