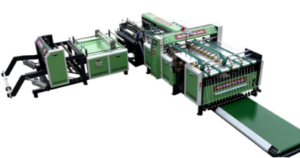

Cutting and sewing machine
Fabric roll pp woven bags
automatic feeding, deviation correction, fixed-length cutting, bottom sewing, and bag collection and counting. The man-machine interface is easy to operate, and it adopts PLC centralized control and servo. Positioning control, intuitive and accurate parameter setting, changing bags of different specifications, the system automatically calculates the proportional parameters, easy to adjust, easy to use, Taiwan control system, frequency conversion control, servo motor drive, color mark tracking system to accurately control the bag length, Stable and reliable operation, high degree of automation.
| Cloth roll woven bag width（mm） | 300-800 |
| Cloth roll woven bag length （mm） | 600-1250 |
| Cutting accuracy（mm） | ±1.5 |
| Pitch（mm） | 7.0-12 |
| speed（pcs/min） | 35-50 |
| power supply（V） | 3P*380 |
| power | 4KW |
| Air pressure（MPA） | ≥0.5 |
| main machine size（mm） | 3650*1750*1290 |
| Main machine size（mm） | 4160*1950*1390 |
| Push bags part size（mm） | 2180*1950*1380 |
| Delievey part size | 2820*1140*550 |
| Weight (T) | ≈4T |
 |
the whole frame is made of 10mm thick steel plate |
 |
touch screen operation, simple and intuitive, high automation level, system alarm; Easy to understand working condition and malfunction |
 |
pneumatic lifting up and down; easy to operate |
 |
automatic feeding by mechanical hand, linear sliding type feeding by mechanical hand, enables the bag to accurately send the material to the end of the creasing device, and the time is accurate. |
 |
motor control cold cutting blade to make cutting easier without frequent adjustments.
Save employee time and improve work efficiency |
 |
Sewing part |
 |
frequency converter 5 (brand name:XINJE) |
About Packing
Our price term is nude packing, we suggest loading like this way , it will take 1*20GP
If you need the wooden packing , you need add 2000 usd for packing
Wooden size
| length | width | height | CBM | weight（kgs) |
| 4.16 | 1.95 | 1.39 | 11.27568 | 1500 |
| 2.38 | 1.62 | 1.135 | 4.376106 | 400 |
| 2.18 | 1.38 | 1.38 | 4.151592 | 500 |
| 2.82 | 1.14 | 0.55 | 1.76814 | 150 |
| total | 22 | 2550 |
it will take 1*40HP + a wooden delivery in addition
